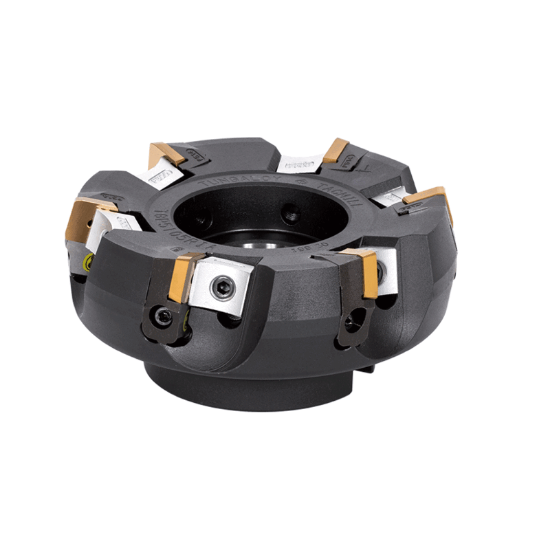

Picture of TUNGALOY TGP5105RIA Milling Cutter 75.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TGP5105RIA Milling Cutter 75.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TGP5105RIA

ISO: TGP5105RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807970
Delivery date: 3-5 days
$827.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.0394
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 53
Cutter Dia 4.9210 124.99MM
Cut Dia Max 5.2360 132.99MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6805136
Insert Style SP
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809567
