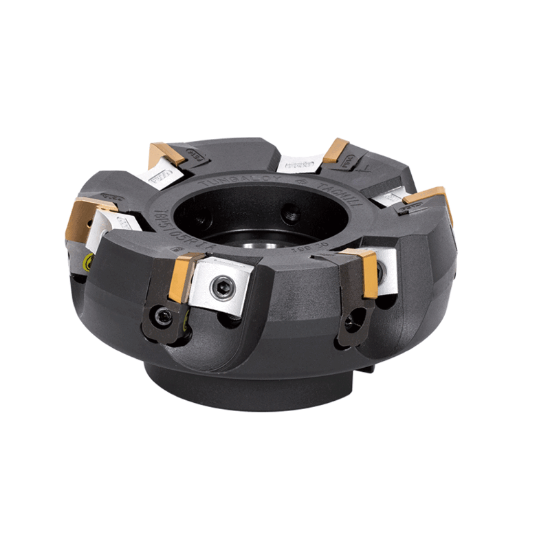

Picture of TUNGALOY TGP5104RIA Milling Cutter 75.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

TUNGALOY TGP5104RIA Milling Cutter 75.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

ANSI: TGP5104RIA

ISO: TGP5104RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807968
Delivery date: 3-5 days
$680.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0394
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 3.9370 100.00MM
Cut Dia Max 4.2910 108.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 53
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 6805136
Insert Style SP
Coolant Thru No
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809567
