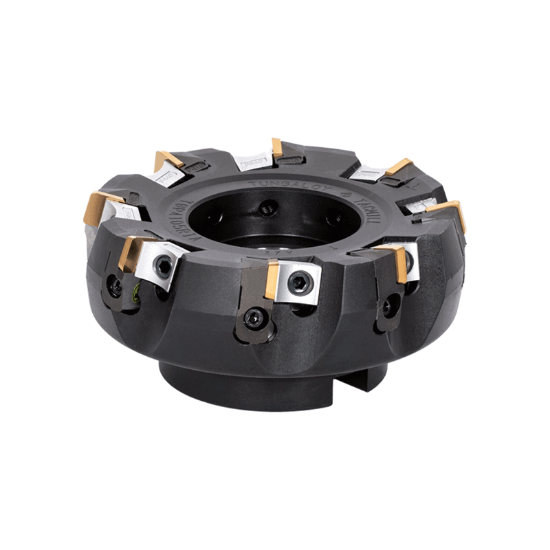

Picture of TUNGALOY TGP4104RBA Milling Cutter 75.0° 3.937 Cutter Diameter Shell Arbor 1.2500 8 Flute

TUNGALOY TGP4104RBA Milling Cutter 75.0° 3.937 Cutter Diameter Shell Arbor 1.2500 8 Flute

ANSI: TGP4104RBA

ISO: TGP4104RBA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807943
Delivery date: 3-5 days
$965.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Dimensional Specifications
Insert Size Ic 42
Flutes/Inserts 8
Depth Of Cut Max 0.2756
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 3.9370 100.00MM
Cut Dia Max 4.2520 108.00MM
Tool Material Steel
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 6805135
Insert Style SP
Fasteners & Connectors
Seat Screw 6651018
Clamp/Wedge 6809562
Clamp Screw 6801818
