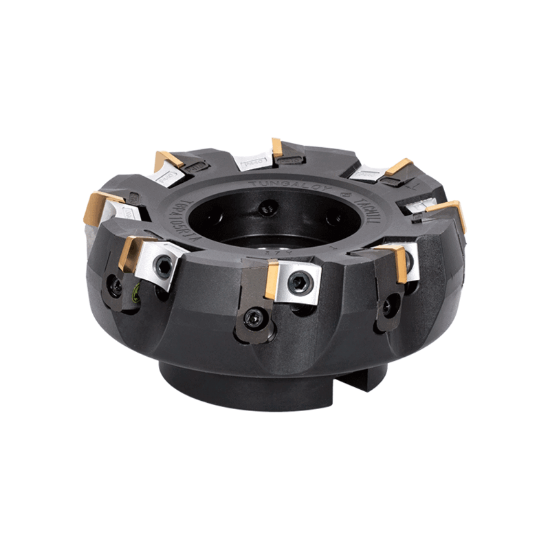

Picture of TUNGALOY TGP4103RIA Milling Cutter 75.0° 3.150 Cutter Diameter Shell Arbor 1.0000 5 Flute

TUNGALOY TGP4103RIA Milling Cutter 75.0° 3.150 Cutter Diameter Shell Arbor 1.0000 5 Flute

ANSI: TGP4103RIA

ISO: TGP4103RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807940
Delivery date: 3-5 days
$710.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 5
Insert Size Ic 42
Cutter Dia 3.1500 80.01MM
Cut Dia Max 3.5030 88.98MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2760
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Insert Style SP
Seat/Nest 6805135
Fasteners & Connectors
Seat Screw 6651018
Clamp/Wedge 6809562
Clamp Screw 6801818
