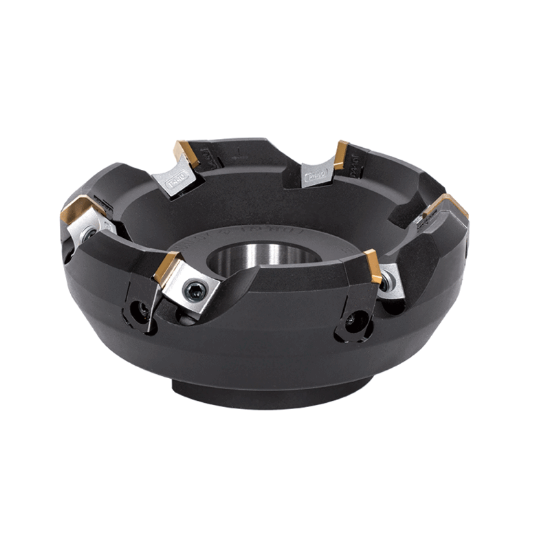

Picture of TUNGALOY TGE4405RI-U Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TGE4405RI-U Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TGE4405RI-U

ISO: TGE4405RI-U

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807934
Delivery date: 3-5 days
$874.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering, Face Milling
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Max 5.4720 138.99MM
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Depth Of Cut Max 0.1570
Insert Size Ic 12
Cutting & Machining Properties
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Clamp Screw 6801818
