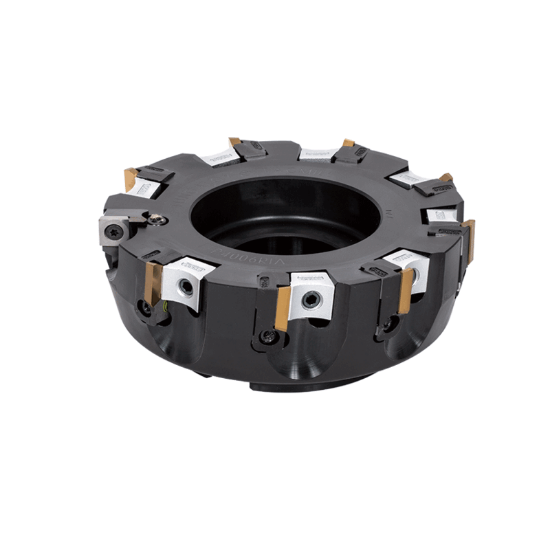

Picture of TUNGALOY TFP4006RIA Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 8 Flute

TUNGALOY TFP4006RIA Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 8 Flute

ANSI: TFP4006RIA

ISO: TFP4006RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807925
Delivery date: 3-5 days
$1,287.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cutter Dia 6.2990 159.99MM
Insert Size Ic 43
Cut Dia Min 6.2990 159.99MM
Machine Side Connection Size 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1575
Flutes/Inserts 8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
Seat/Nest 6805190
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Seat Screw 6825516
Clamp Screw 6801818
Insert Screw 6802549
Clamp/Wedge 6809563
