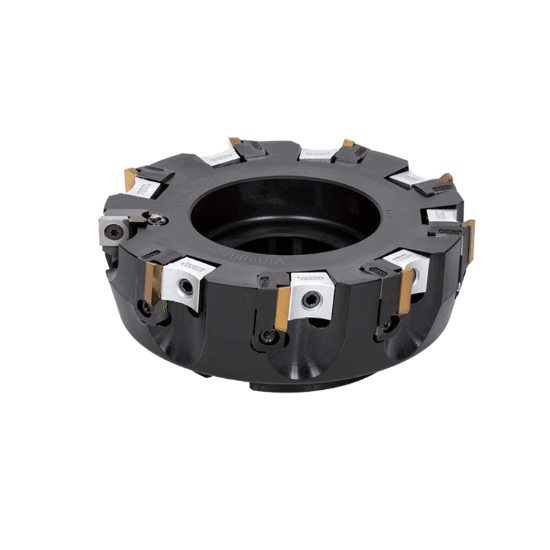

Picture of TUNGALOY TFP4004RIA Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

TUNGALOY TFP4004RIA Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

ANSI: TFP4004RIA

ISO: TFP4004RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807923
Delivery date: 3-5 days
$871.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0394
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Insert Size Ic 43
Cut Dia Min 3.9370 100.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest 6805190
Hand R/L Right
Insert Style TP
Coolant Thru No
Fasteners & Connectors
Clamp Screw 6801818
Insert Screw 6802549
Seat Screw 6825516
Clamp/Wedge 6809563
