  • TUNGALOY TFMRN563-22R-12FL Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

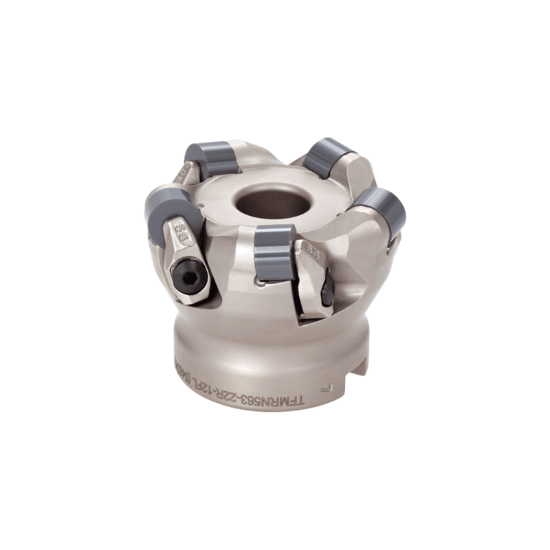

Picture of TUNGALOY TFMRN563-22R-12FL Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TFMRN563-22R-12FL Milling Cutter Button Cutter 2.480 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TFMRN563-22R-12FL

ISO: TFMRN563-22R-12FL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6309652
Delivery date: 3-5 days
$722.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 2.4800 62.99MM
Insert Size Ic 12
Cut Dia Min 1.9820 50.34MM
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 2.4800 62.99MM
Depth Of Cut Max 0.0790
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge 6198186
Clamp Screw 4350728
