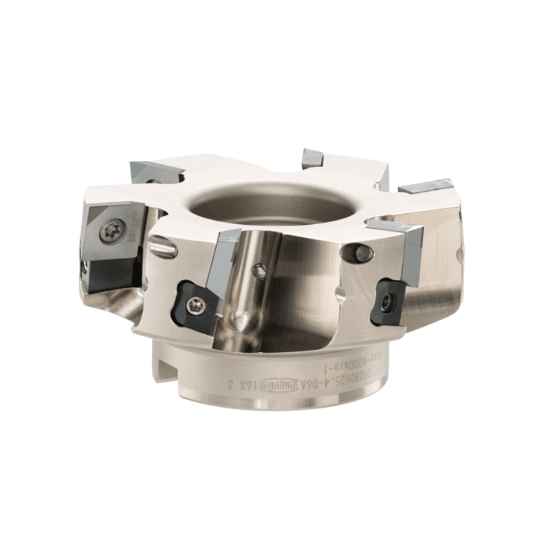

Picture of TUNGALOY TFE12R125M32.0E10A Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.2598 10 Flute

TUNGALOY TFE12R125M32.0E10A Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.2598 10 Flute

ANSI: TFE12R125M32.0E10A

ISO: TFE12R125M32.0E10A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6748508
Delivery date: 3-5 days
$1,913.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Cut Dia Min 4.9210 124.99MM
Cutter Dia 4.9210 124.99MM
Depth Of Cut Max 0.1575
Flutes/Inserts 10
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SE
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802575
Clamp/Wedge 6748509
Clamp Screw 6805273
