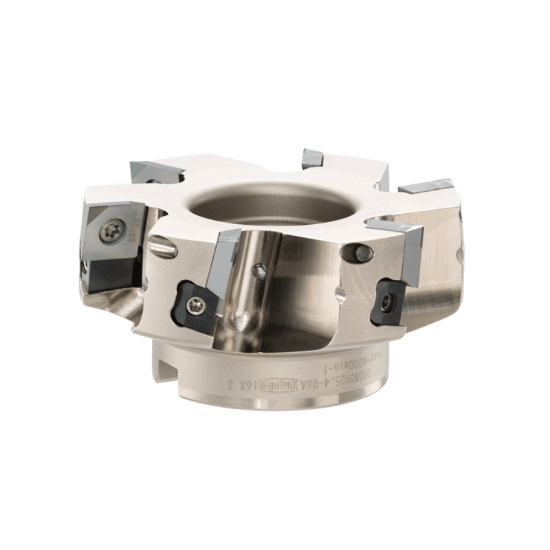

Picture of TUNGALOY TFE12R125M31.7-10A Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.2500 10 Flute

TUNGALOY TFE12R125M31.7-10A Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.2500 10 Flute

ANSI: TFE12R125M31.7-10A

ISO: TFE12R125M31.7-10A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6748505
Delivery date: 3-5 days
$1,913.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 10
Cut Dia Min 4.9210 124.99MM
Cutter Dia 4.9210 124.99MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style SE
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Clamp Screw 6805273
Clamp/Wedge 6748509
Insert Screw 6802575
