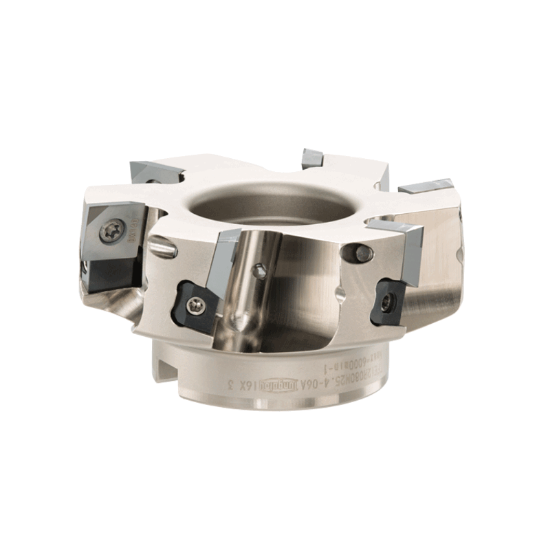

Picture of TUNGALOY TFE12R100M27.0E08A Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 0.6300 8 Flute

TUNGALOY TFE12R100M27.0E08A Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 0.6300 8 Flute

ANSI: TFE12R100M27.0E08A

ISO: TFE12R100M27.0E08A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6748507
Delivery date: 3-5 days
$1,562.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 12
Depth Of Cut Max 0.3150
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style SE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge 6748509
Clamp Screw 6805273
Insert Screw 6802575
