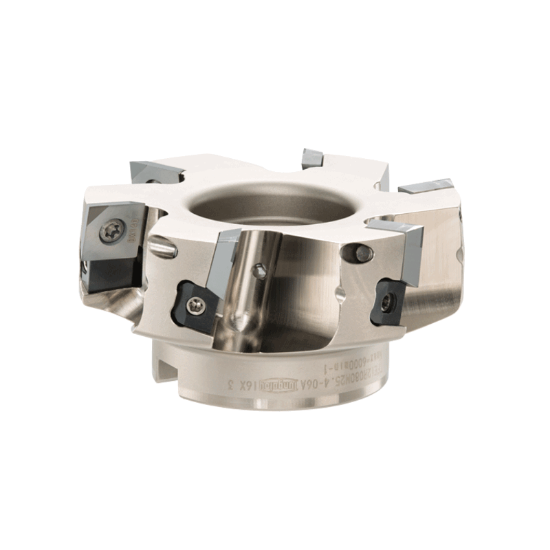

Picture of TUNGALOY TFE12R080M27.0E06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TFE12R080M27.0E06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TFE12R080M27.0E06A

ISO: TFE12R080M27.0E06A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6748506
Delivery date: 3-5 days
$1,242.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 6
Insert Size Ic 12
Depth Of Cut Max 0.3150
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802575
Clamp Screw 6805273
Clamp/Wedge 6748509
