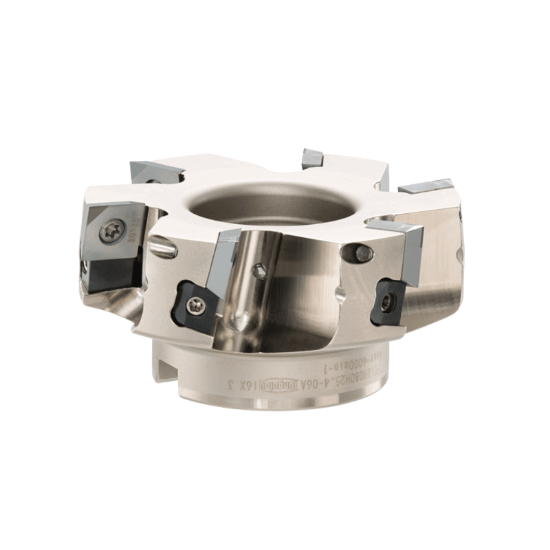

Picture of TUNGALOY TFE12R080M25.4-06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TFE12R080M25.4-06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TFE12R080M25.4-06A

ISO: TFE12R080M25.4-06A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6740692
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.3150
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Tool Material Steel
Cutting & Machining Properties
Insert Style SE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Clamp Screw 6805273
Insert Screw 6802575
Clamp/Wedge 6748509
