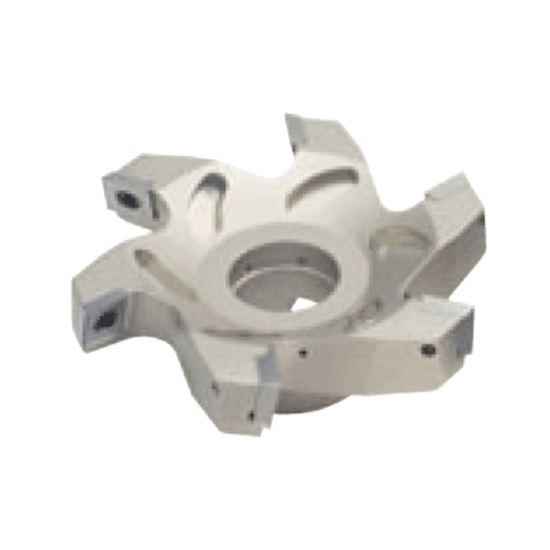

Picture of TUNGALOY TFE12125R Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TFE12125R Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TFE12125R

ISO: TFE12125R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822437
Delivery date: 3-5 days
$812.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.6250
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.9210 124.99MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Insert Size Ic 12
Cut Dia Min 4.9210 124.99MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816784
