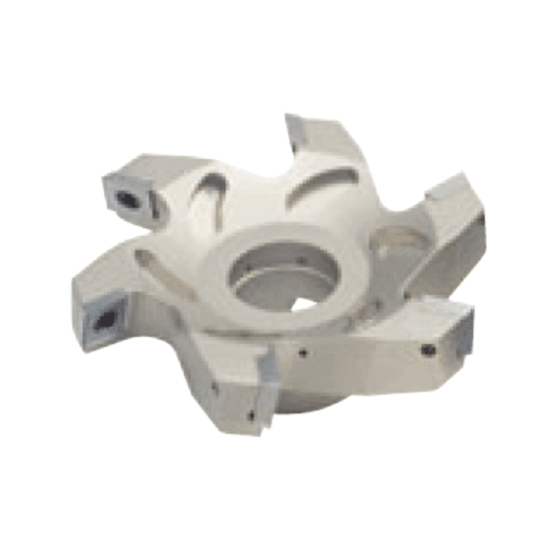

Picture of TUNGALOY TFE12100R Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TFE12100R Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TFE12100R

ISO: TFE12100R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822436
Delivery date: 3-5 days
$728.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cut Dia Min 3.9370 100.00MM
Insert Size Ic 12
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
