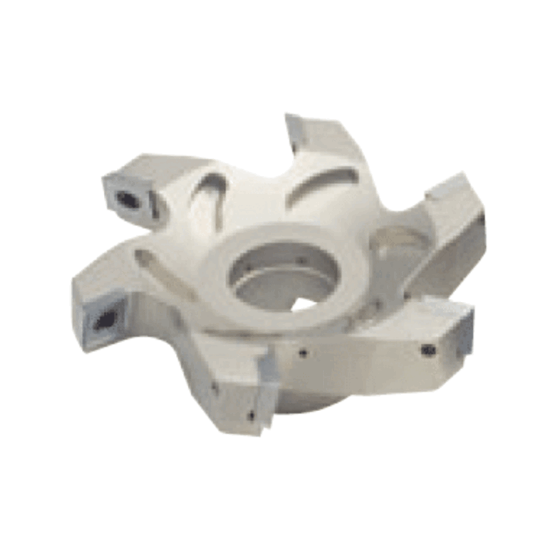

Picture of TUNGALOY TFE12063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 3 Flute

TUNGALOY TFE12063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 3 Flute

ANSI: TFE12063R

ISO: TFE12063R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822434
Delivery date: 3-5 days
$513.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Insert Size Ic 12
Depth Of Cut Max 0.3150
Cutter Dia 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 3
Tool Material Steel
Cutting & Machining Properties
Insert Style SE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
