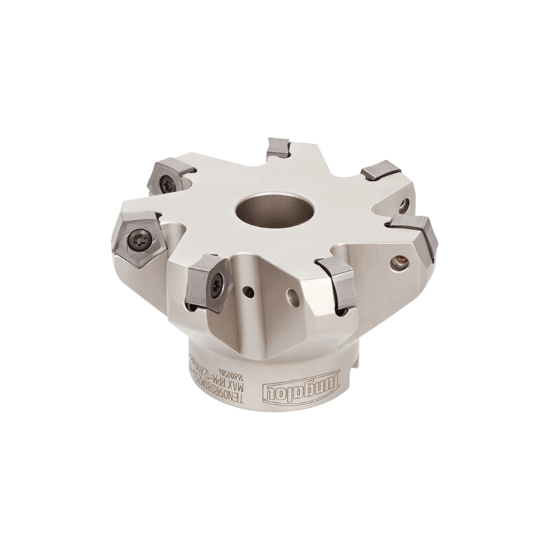

Picture of TUNGALOY TEN09R600U0200A20 Milling Cutter 70.0° 6.000 Cutter Diameter Shell Arbor 2.0000 20 Flute

TUNGALOY TEN09R600U0200A20 Milling Cutter 70.0° 6.000 Cutter Diameter Shell Arbor 2.0000 20 Flute

ANSI: TEN09R600U0200A20

ISO: TEN09R600U0200A20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6892229
Delivery date: 3-5 days
$2,010.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 20
Depth Of Cut Max 0.2500
Cut Dia Min 6.0000 152.40MM
Cutter Dia 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 90
Cut Dia Max 6.2400 158.50MM
Cutting & Machining Properties
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7011251
