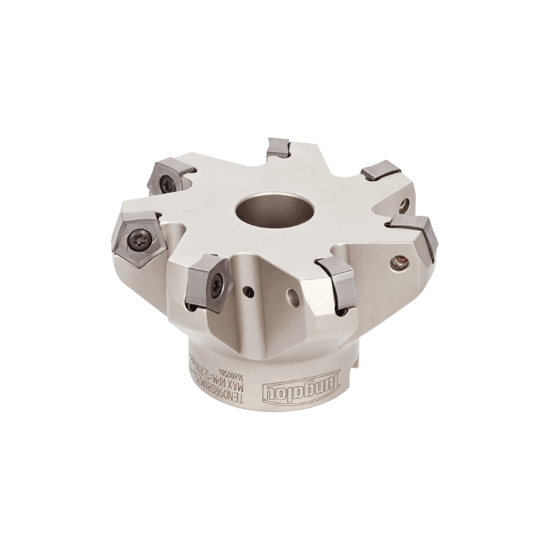

Picture of TUNGALOY TEN09R160M50.8-12 Milling Cutter 70.0° 6.299 Cutter Diameter Shell Arbor 2.0000 12 Flute

TUNGALOY TEN09R160M50.8-12 Milling Cutter 70.0° 6.299 Cutter Diameter Shell Arbor 2.0000 12 Flute

ANSI: TEN09R160M50.8-12

ISO: TEN09R160M50.8-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6860130
Delivery date: 3-5 days
$1,648.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 90
Depth Of Cut Max 0.2500
Cutter Dia 6.2990 159.99MM
Cut Dia Min 6.2990 159.99MM
Tool Material Steel
Flutes/Inserts 12
Machine Side Connection Size 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 6.5350 165.99MM
Cutting & Machining Properties
Hand R/L Right
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7011251
