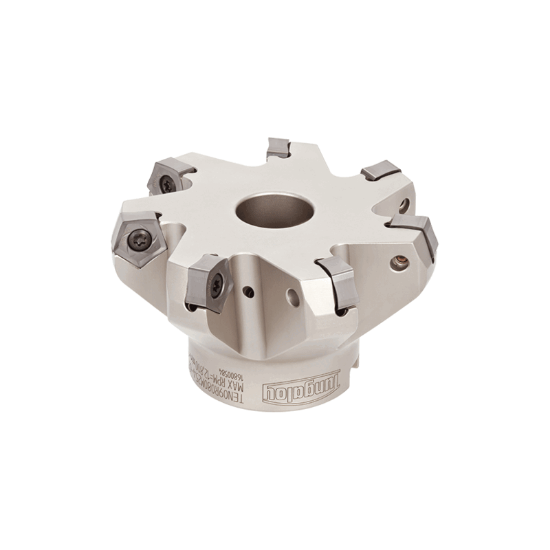

Picture of TUNGALOY TEN09R080M27.0E10 Milling Cutter 70.0° 3.150 Cutter Diameter Shell Arbor 0.6300 10 Flute

TUNGALOY TEN09R080M27.0E10 Milling Cutter 70.0° 3.150 Cutter Diameter Shell Arbor 0.6300 10 Flute

ANSI: TEN09R080M27.0E10

ISO: TEN09R080M27.0E10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6892191
Delivery date: 3-5 days
$1,021.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Insert Size Ic 90
Depth Of Cut Max 0.2500
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 10
Machine Side Connection Size 0.6299 16.00MM
Cut Dia Max 3.3860 86.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7011251
