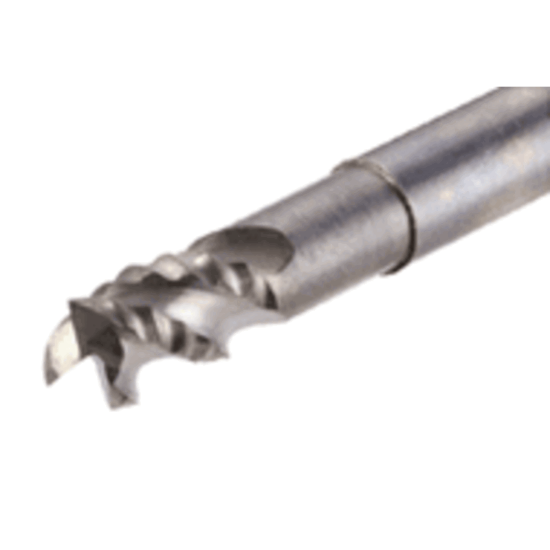

TUNGALOY TECR200B3-17/53W20R02A104 KS15F DIA 20MM SH 0.7874 LOC 0.6693 OAL 4.0945 End Mill Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621760
Delivery date: 3-5 days
$344.66

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Cutter Style Carbide Rougher
Dimension Description 0.787 x 0.787 x 0.669 x 4.095
Tool Material Carbide
Machine Side Connection Type Weldon
Corner Radius 0.0079 0.20MM
Length Type Standard
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 0.6693 17.00MM
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
