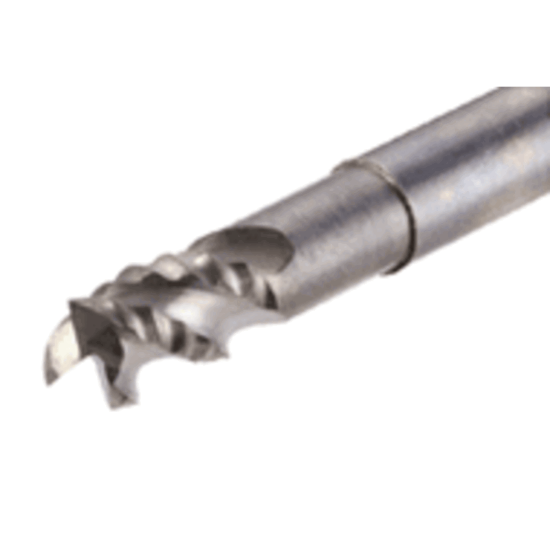

TUNGALOY TECR160B3-14/43W16R02A92 KS15F DIA 16MM SH 0.6299 LOC 0.5510 OAL 3.6220 End Mill Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621759
Delivery date: 3-5 days
$208.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.6220 92.00MM
Inch/Metric Metric
Dimension Description 0.630 x 0.630 x 0.551 x 3.622
Machine Side Connection Size 0.6299 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Rougher
Corner Radius 0.0079 0.20MM
Length Type Standard
Shank/Pilot Dia 0.6299 16.00MM
Length Of Cut 0.5510 14.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
