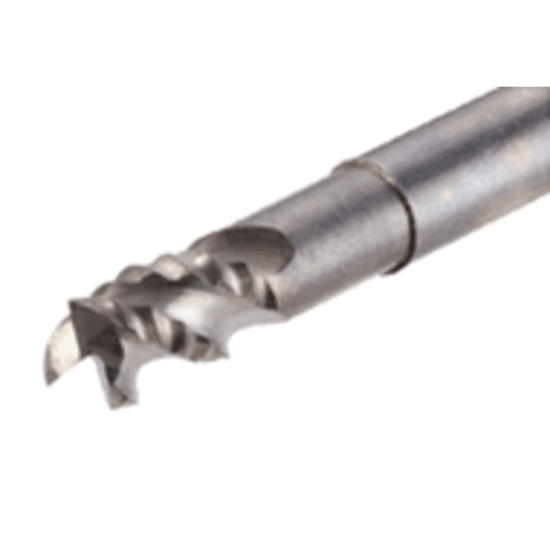

TUNGALOY TECR080B3-12/40W08R02A78 KS15F DIA 8MM SH 0.3150 LOC 0.4724 OAL 3.0709 End Mill Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5622064
Delivery date: 3-5 days
$105.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Dimension Description 0.315 x 0.315 x 0.472 x 3.071
Flutes/Inserts 3
Cutter Style Carbide Rougher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Length Of Cut 0.4724 12.00MM
Inch/Metric Metric
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 3.0709 78.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
