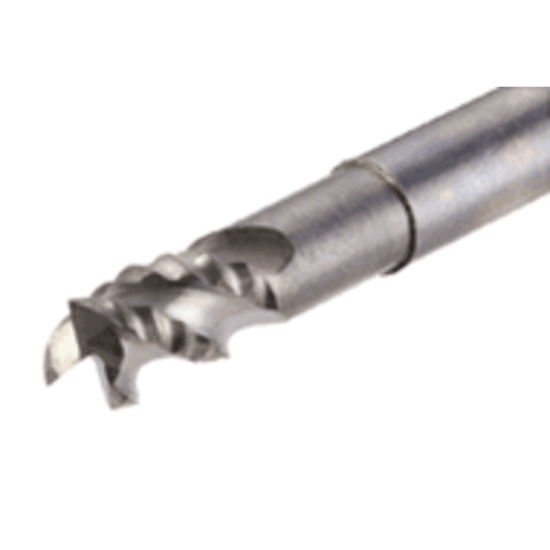

TUNGALOY TECR080B3-12/27W08R02A63 KS15F DIA 8MM SH 0.3150 LOC 0.4724 OAL 2.4803 End Mill Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621756
Delivery date: 3-5 days
$71.71

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Description 0.315 x 0.315 x 0.472 x 2.480
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Carbide Rougher
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
End Of Tool Shape Corner Radius
Corner Radius 0.0079 0.20MM
Length Of Cut 0.4724 12.00MM
Length Type Standard
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
