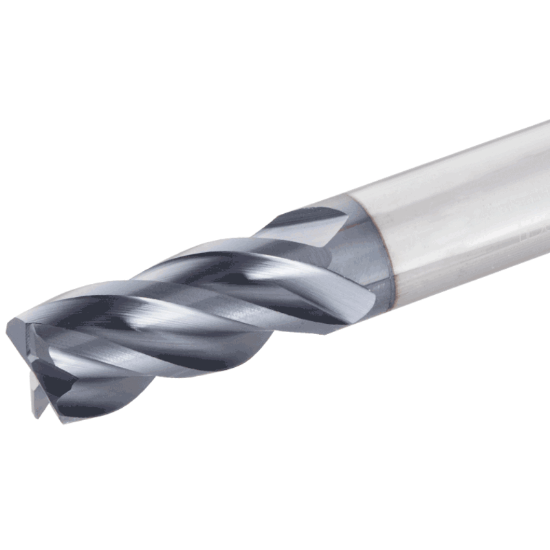

TUNGALOY TECK100H4M-20W10CF-R05C GH730 DIA 10MM SH 0.3937 LOC 0.7874 OAL 2.8346 End Mill Standard Flute Variable Helix Carbide TiCNO Single End Corner Radius 0.0197 0.50MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5668356
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCNO
Application Copy Milling, Side Milling, Slot Milling, Face Milling, Profile Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Description 0.394 x 0.394 x 0.787 x 2.835
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutter Dia 0.3937 10.00MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3937 10.00MM
Length Type Standard
Overall Len 2.8346 72.00MM
Flutes/Inserts 4
Inch/Metric Metric
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Corner Radius 0.0197 0.50MM
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
