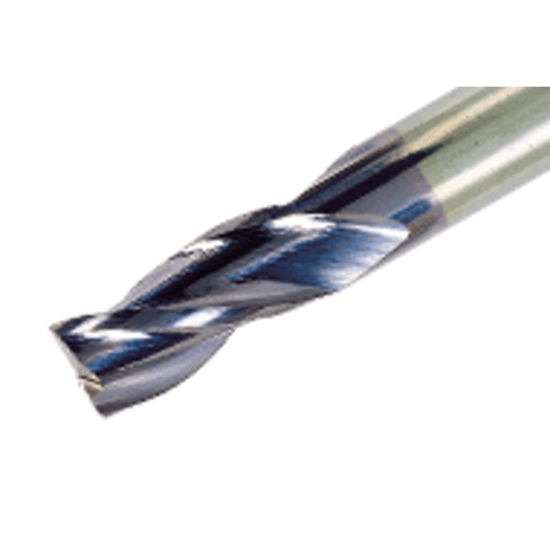

TUNGALOY TECC030E3-10C03-38 GH730 DIA 3MM SH 0.1181 LOC 0.3937 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide TiCNO Single End 45.0° Chamfer TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621569
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Coating TiCNO
Dimensional Specifications
Cutter Dia 0.1181 3.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Length Of Cut 0.3937 10.00MM
Length Type Standard
Helix Angle 38°
Overall Len 1.4961 38.00MM
Machine Side Connection Size 0.1181 3.00MM
Single/Double End Single End
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.1181 3.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Dimension Description 0.118 x 0.118 x 0.394 x 1.496
Flutes/Inserts 3
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
