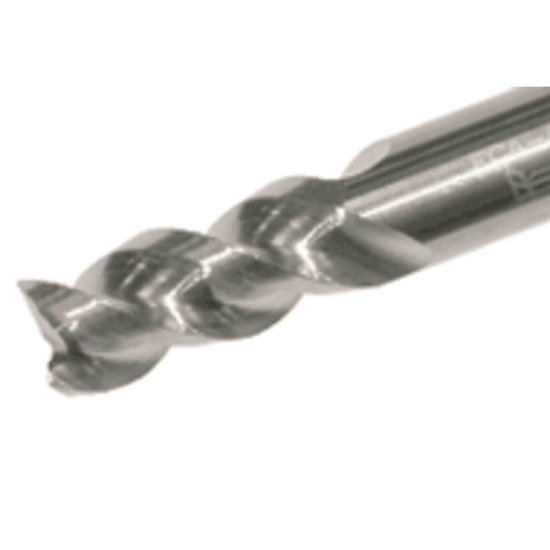

TUNGALOY TECA200B3-38W20-104 KS15F DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621820
Delivery date: 3-5 days
$234.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Side Milling, Face Milling, Profile Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Overall Len 4.0945 104.00MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Corner Radius 0.0079 0.20MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
