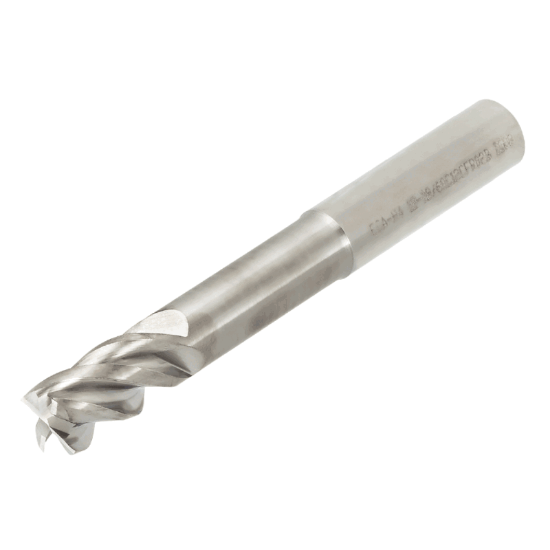

TUNGALOY TECA160H4-32/48C16CF-R02 KS15F DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.9370 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623350
Delivery date: 3-5 days
$168.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Profile Milling, Copy Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.630 x 0.630 x 1.260 x 3.937
Corner Radius 0.0079 0.20MM
Overall Len 3.9370 100.00MM
Length Type Standard
Cutter Dia 0.6299 16.00MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6299 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Length Of Cut 1.2600 32.00MM
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
