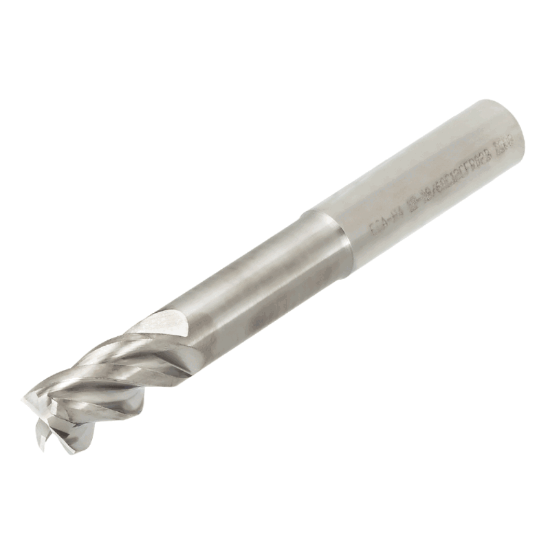

TUNGALOY TECA160H4-24/80C16CF-R02 KS15F DIA 16MM SH 0.6299 LOC 0.9449 OAL 5.0394 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623336
Delivery date: 3-5 days
$274.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.9449 24.00MM
Dimension Description 0.630 x 0.630 x 0.945 x 5.039
Single/Double End Single End
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 5.0394 128.00MM
End Of Tool Shape Corner Radius
Cutter Dia 0.6299 16.00MM
Corner Radius 0.0079 0.20MM
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 4
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
