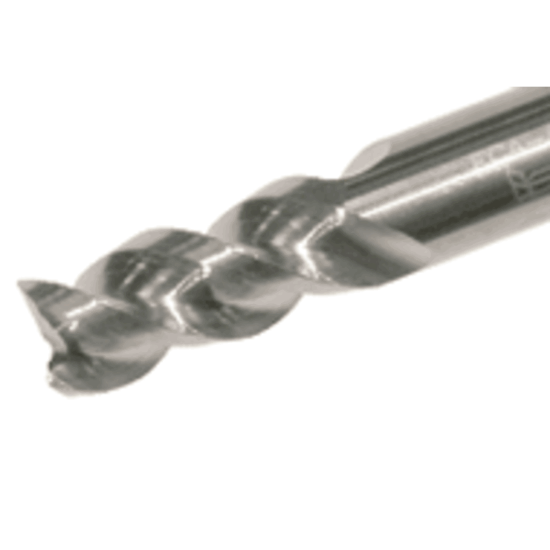

TUNGALOY TECA160B3-32W16-92 KS15F DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.6220 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621819
Delivery date: 3-5 days
$140.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Side Milling, Profile Milling, Slot Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6299 16.00MM
Inch/Metric Metric
Single/Double End Single End
Length Of Cut 1.2600 32.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Weldon
Overall Len 3.6220 92.00MM
Dimension Description 0.630 x 0.630 x 1.260 x 3.622
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Corner Radius 0.0079 0.20MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
