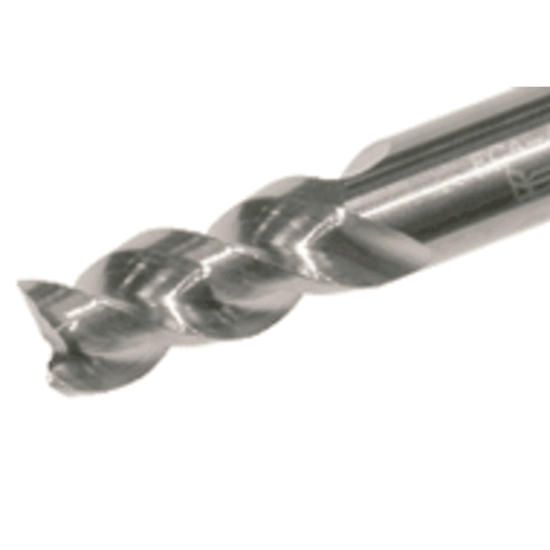

TUNGALOY TECA120B3-30C12R40-83 KS15F DIA 12MM SH 0.4724 LOC 1.1811 OAL 3.2677 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1575 4.00MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3319497
Delivery date: 3-5 days
$103.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Inch/Metric Metric
Single/Double End Single End
Corner Radius 0.1575 4.00MM
Flutes/Inserts 3
Dimension Description 0.472 x 0.472 x 1.181 x 3.268
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.4724 12.00MM
Overall Len 3.2677 83.00MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Medical Yes
