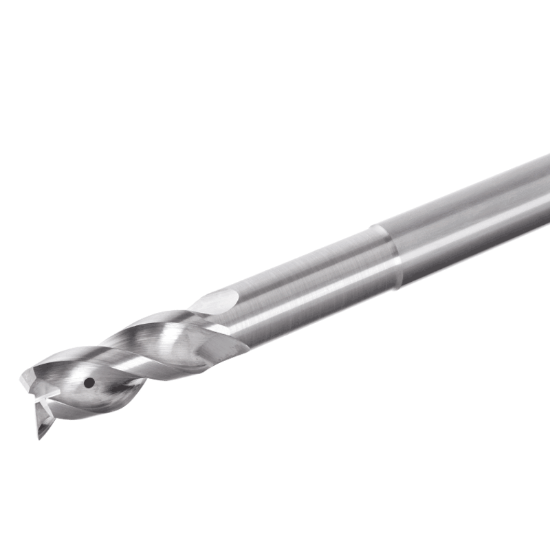

TUNGALOY TECA100H3-20/50C10CF-R02C KS15F DIA 10MM SH 0.3937 LOC 0.7874 OAL 3.9370 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623177
Delivery date: 3-5 days
$188.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Application Copy Milling, Face Milling, Profile Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.3937 10.00MM
Overall Len 3.9370 100.00MM
Length Type Standard
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.3937 10.00MM
End Of Tool Shape Corner Radius
Dimension Description 0.394 x 0.394 x 0.787 x 3.937
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
