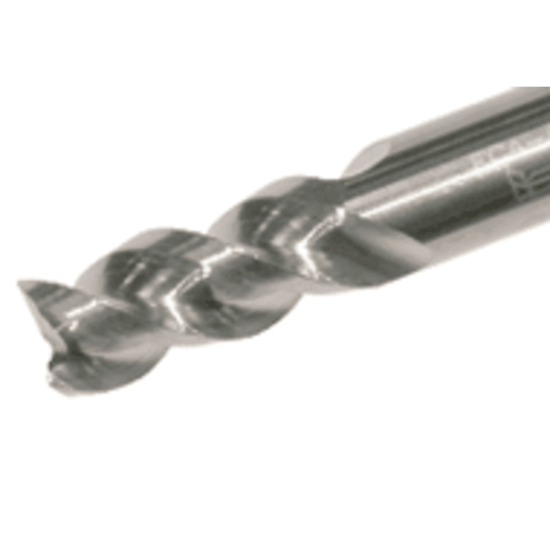

TUNGALOY TECA100B3-25C10R30-72 KS15F DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.8346 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1181 3.00MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3319493
Delivery date: 3-5 days
$72.77

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.1181 3.00MM
Overall Len 2.8346 72.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Metric
Dimension Description 0.394 x 0.394 x 0.984 x 2.835
Machine Side Connection Size 0.3937 10.00MM
Length Type Standard
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.9843 25.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
