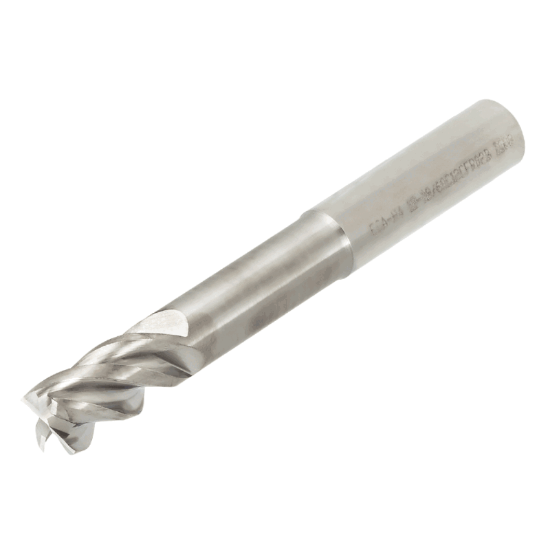

TUNGALOY TECA080H4-16/24C08CF-R02 KS15F DIA 8MM SH 0.3150 LOC 0.6299 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623347
Delivery date: 3-5 days
$51.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Dimension Description 0.315 x 0.315 x 0.630 x 2.480
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Length Of Cut 0.6300 16.00MM
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Corner Radius 0.0079 0.20MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
