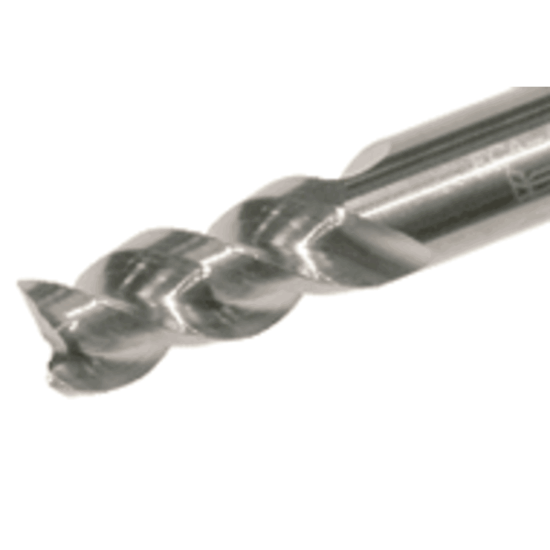

TUNGALOY TECA080B3-20W08-63 KS15F DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.4803 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621815
Delivery date: 3-5 days
$43.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3150 8.00MM
Flutes/Inserts 3
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.3150 8.00MM
Length Type Standard
Inch/Metric Metric
Dimension Description 0.315 x 0.315 x 0.787 x 2.480
Corner Radius 0.0079 0.20MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
