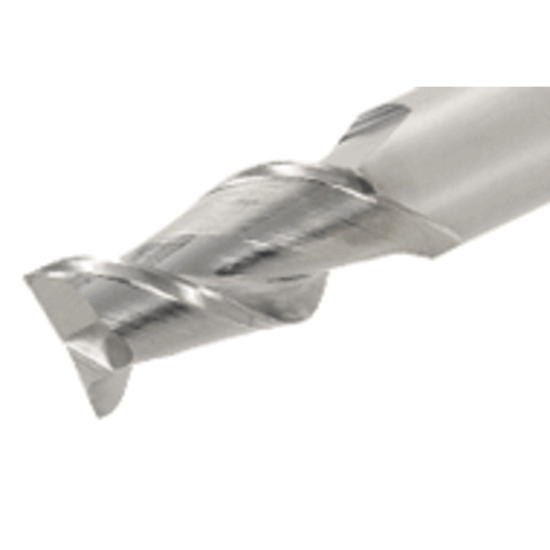

TUNGALOY TECA080B2-20C08-63 KS15F DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5620754
Delivery date: 3-5 days
$43.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Cutter Style Carbide Finisher
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Square
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.315 x 0.315 x 0.787 x 2.480
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
