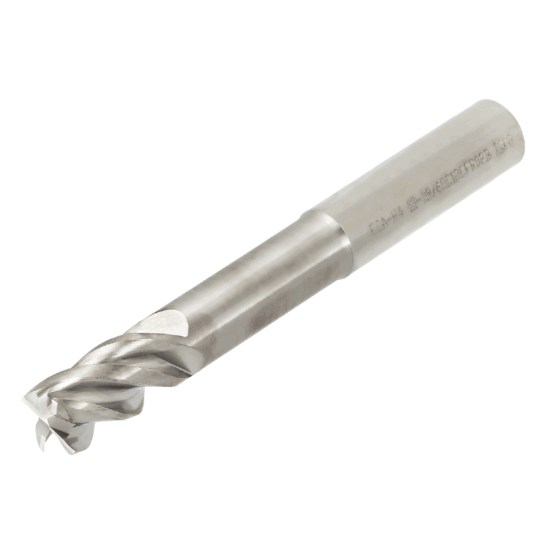

TUNGALOY TECA060H4-09/30C06CF-R02 KS15F DIA 6MM SH 0.2362 LOC 0.3543 OAL 2.5591 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623227
Delivery date: 3-5 days
$49.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Profile Milling, Copy Milling, Slot Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Inch/Metric Metric
End Of Tool Shape Corner Radius
Single/Double End Single End
Overall Len 2.5591 65.00MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.236 x 0.236 x 0.354 x 2.559
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3543 9.00MM
Length Type Standard
Cutter Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
