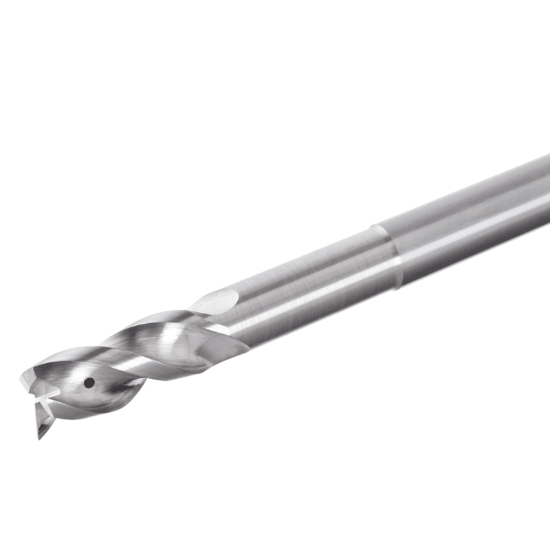

TUNGALOY TECA060H3-12/30C06CF-R02C KS15F DIA 6MM SH 0.2362 LOC 0.4724 OAL 2.5591 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5623173
Delivery date: 3-5 days
$82.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Application Profile Milling, Slot Milling, Face Milling, Copy Milling
Package Size 1
Dimensional Specifications
Overall Len 2.5591 65.00MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 3
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.4724 12.00MM
Length Type Standard
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Dimension Description 0.236 x 0.236 x 0.472 x 2.559
Inch/Metric Metric
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
