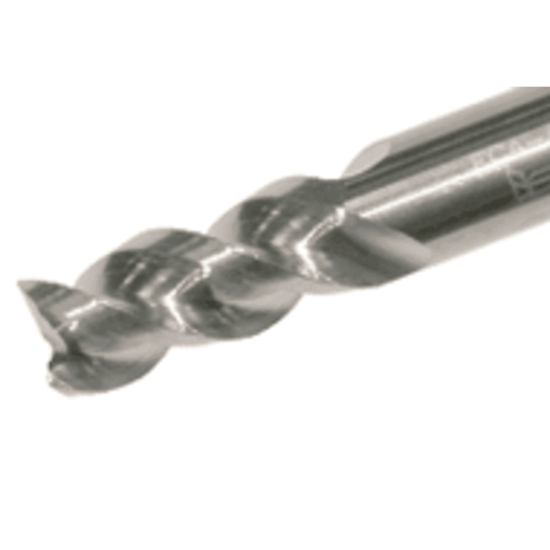

TUNGALOY TECA060B3-16W06-57 KS15F DIA 6MM SH 0.2362 LOC 0.6299 OAL 2.2441 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621814
Delivery date: 3-5 days
$30.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.2362 6.00MM
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.236 x 0.236 x 0.630 x 2.244
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Cutter Dia 0.2362 6.00MM
Length Of Cut 0.6300 16.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
