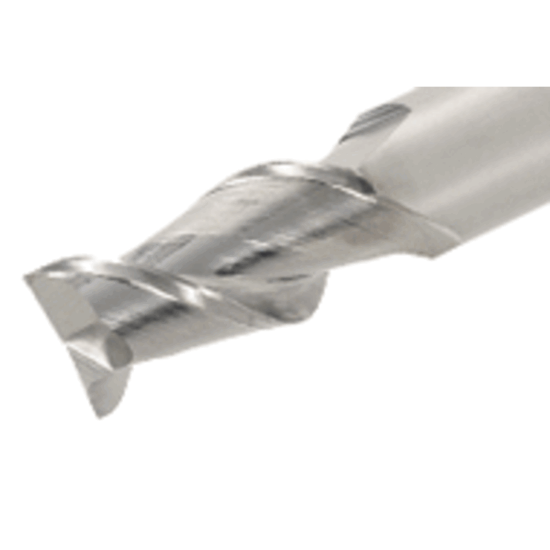

TUNGALOY TECA060B2-16C06-57 KS15F DIA 6MM SH 0.2362 LOC 0.6299 OAL 2.2441 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5620753
Delivery date: 3-5 days
$30.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.2362 6.00MM
Length Of Cut 0.6300 16.00MM
Single/Double End Single End
Flutes/Inserts 2
Inch/Metric Metric
Length Type Standard
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Dimension Description 0.236 x 0.236 x 0.630 x 2.244
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
