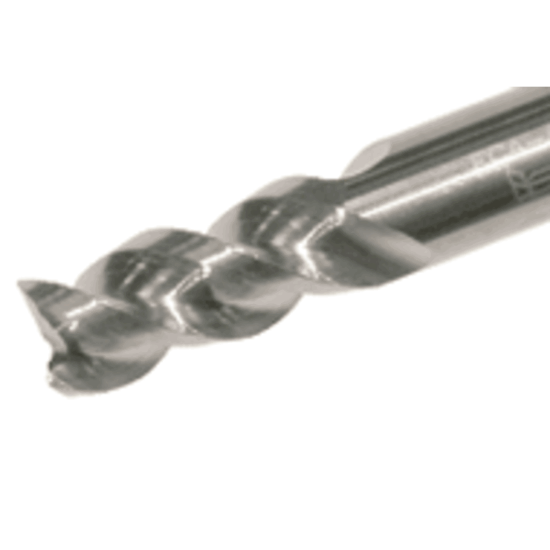

TUNGALOY TECA050B3-14W06-57 KS15F DIA 5MM SH 0.2362 LOC 0.5510 OAL 2.2441 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621813
Delivery date: 3-5 days
$32.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.197 x 0.236 x 0.551 x 2.244
Inch/Metric Metric
Corner Radius 0.0079 0.20MM
Length Type Standard
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Length Of Cut 0.5510 14.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.2362 6.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
