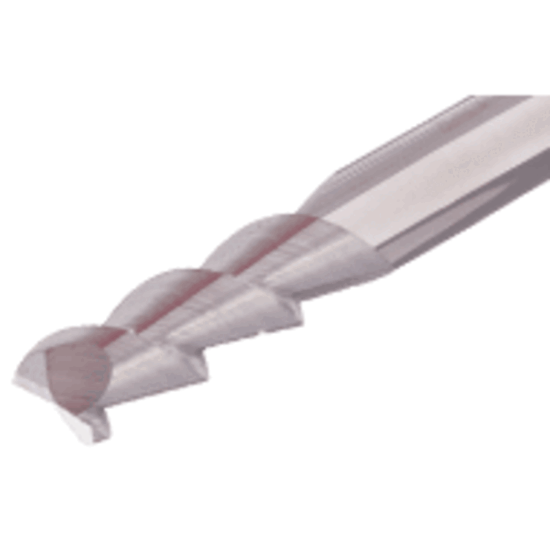

TUNGALOY TECA040F2-11C04-50 KS15F DIA 4MM SH 0.1575 LOC 0.4331 OAL 1.9685 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621138
Delivery date: 3-5 days
$38.34

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Description 0.157 x 0.157 x 0.433 x 1.969
Shank/Pilot Dia 0.1574 4.00MM
Length Of Cut 0.4331 11.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1574 4.00MM
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Cutter Style Carbide Finisher
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Size 0.1575 4.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Mold Yes
