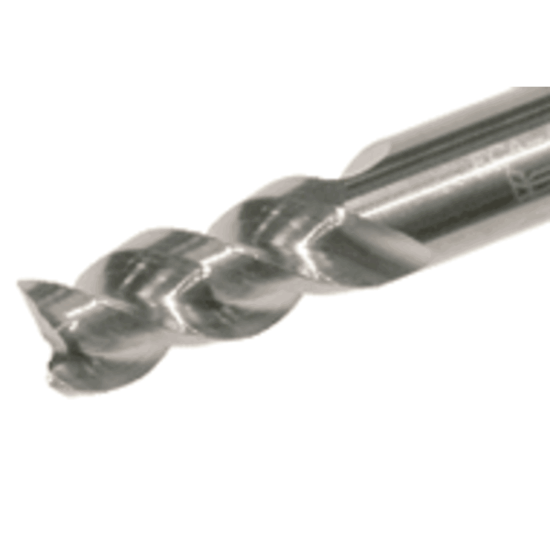

TUNGALOY TECA040B3-12C06-57 KS15F DIA 4MM SH 0.2362 LOC 0.4724 OAL 2.2441 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0039 0.10MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5621803
Delivery date: 3-5 days
$37.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutter Dia 0.1574 4.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.4724 12.00MM
Inch/Metric Metric
Dimension Description 0.157 x 0.236 x 0.472 x 2.244
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Length Type Standard
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
