  • TUNGALOY TDXU-2125FS-02 2-1/8" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

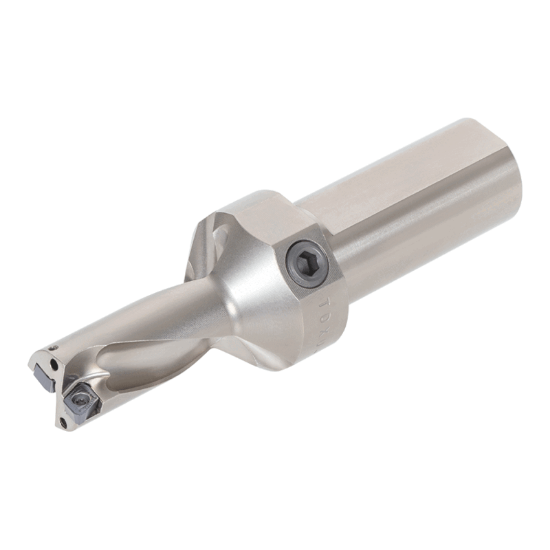

Picture of TUNGALOY TDXU-2125FS-02 2-1/8" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

TUNGALOY TDXU-2125FS-02 2-1/8" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

ISO: TDXU-2125FS-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6738684
Delivery date: 3-5 days
$981.10

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flute Length 4.3110 109.50MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 8.5480 217.12MM
Cutter Dia 2.1250 53.98MM - 2-1/8
Cut Dia Min 2.1250 53.98MM - 2-1/8
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Dia Deep 2.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
