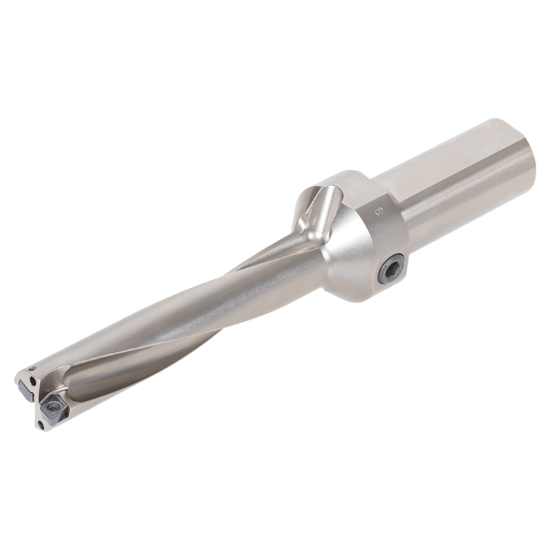

Picture of TUNGALOY TDXU-1375FS-05 1-3/8" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 5, Flat cotter

TUNGALOY TDXU-1375FS-05 1-3/8" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 5, Flat cotter

ISO: TDXU-1375FS-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718577
Delivery date: 3-5 days
$943.65

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Dia Deep 5.0XD
Cut Dia Min 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Boring Bar,Weldon
Overall Len 11.0110 279.68MM
Tool Material Steel
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 6.9180 175.72MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
