  • TUNGALOY TDXU-1187FS-02 1.187" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

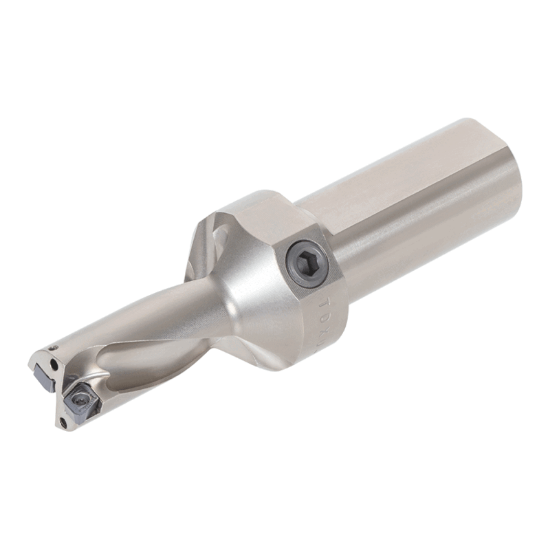

Picture of TUNGALOY TDXU-1187FS-02 1.187" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

TUNGALOY TDXU-1187FS-02 1.187" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

ISO: TDXU-1187FS-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718567
Delivery date: 3-5 days
$630.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Flutes/Inserts 2
Flute Length 2.4030 61.04MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.1875 30.16MM - 1-3/16
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 5.9670 151.56MM
Cut Dia Min 1.1875 30.16MM - 1-3/16
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
