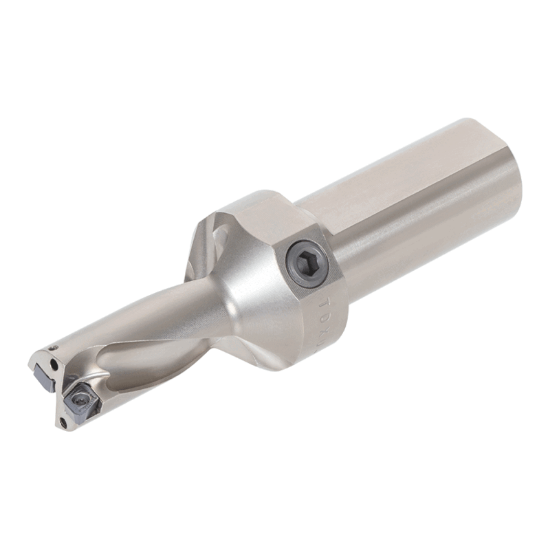

Picture of TUNGALOY TDXU-1062FS-02 1.062" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

TUNGALOY TDXU-1062FS-02 1.062" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 2, Flat cotter

ISO: TDXU-1062FS-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718562
Delivery date: 3-5 days
$630.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 1.0156 25.79MM - 1-1/64
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 2.1530 54.69MM
Overall Len 5.7100 145.03MM
Cut Dia Min 1.0156 25.79MM - 1-1/64
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
