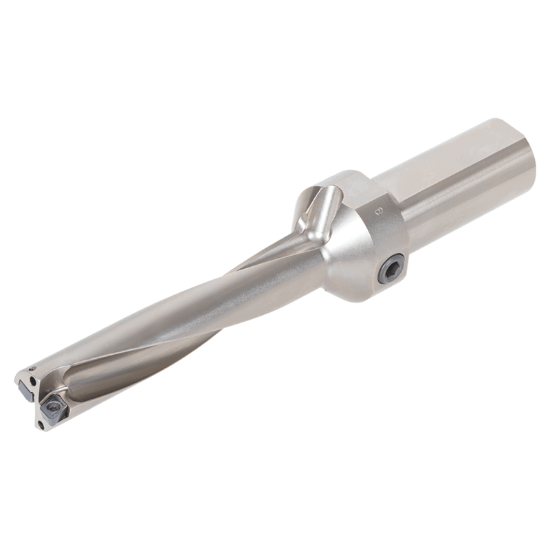

Picture of TUNGALOY TDXU-0750FS-05 3/4" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 5, Flat cotter

TUNGALOY TDXU-0750FS-05 3/4" TungDrill Twisted Indexable Insert Drill s with side & rear Coolant port, L/D = 5, Flat cotter

ISO: TDXU-0750FS-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718527
Delivery date: 3-5 days
$632.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Overall Len 7.1400 181.36MM
Dia Deep 5.0XD
Flute Length 3.7690 95.73MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
