  • TUNGALOY TDX530F40-3 53mm TungDrill Twisted Indexable Insert Drill s, L/D=3, Flat cotter

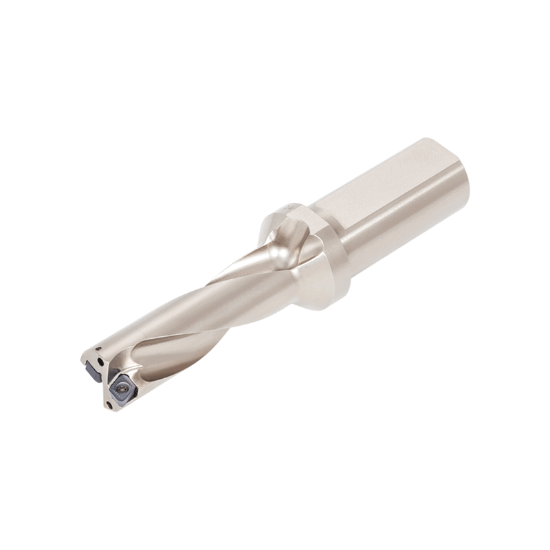

Picture of TUNGALOY TDX530F40-3 53mm TungDrill Twisted Indexable Insert Drill s, L/D=3, Flat cotter

TUNGALOY TDX530F40-3 53mm TungDrill Twisted Indexable Insert Drill s, L/D=3, Flat cotter

ISO: TDX530F40-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718492
Delivery date: 3-5 days
$1,076.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 2.0870 53.01MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Machine Side Connection Size 1.5748 40.00MM
Overall Len 10.7323 272.60MM
Dia Deep 3.0XD
Cut Dia Min 2.0870 53.01MM
Tool Material Steel
Flute Length 6.3230 160.60MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Mold Yes
