  • TUNGALOY TDX510F40-5 51mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

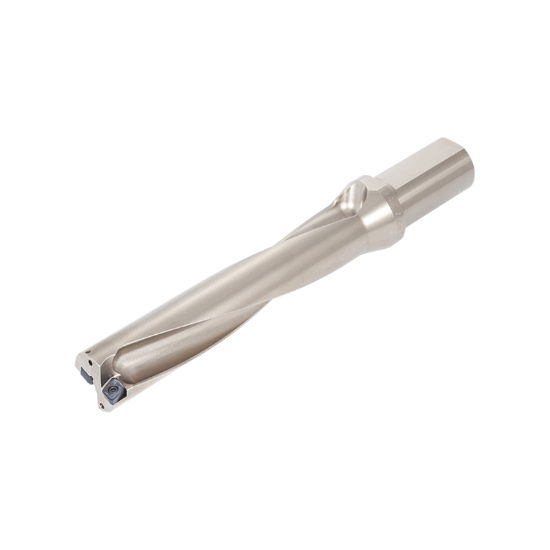

Picture of TUNGALOY TDX510F40-5 51mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

TUNGALOY TDX510F40-5 51mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

ISO: TDX510F40-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718508
Delivery date: 3-5 days
$1,134.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Dia Deep 5.0XD
Overall Len 14.4331 366.60MM
Cut Dia Min 2.0080 51.00MM
Machine Side Connection Size 1.5748 40.00MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Cutter Dia 2.0080 51.00MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Flute Length 10.1020 256.59MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
