  • TUNGALOY TDX245F25-2 24.5mm TungDrill Twisted Indexable Insert Drill s, L/D=2, Flat cotter

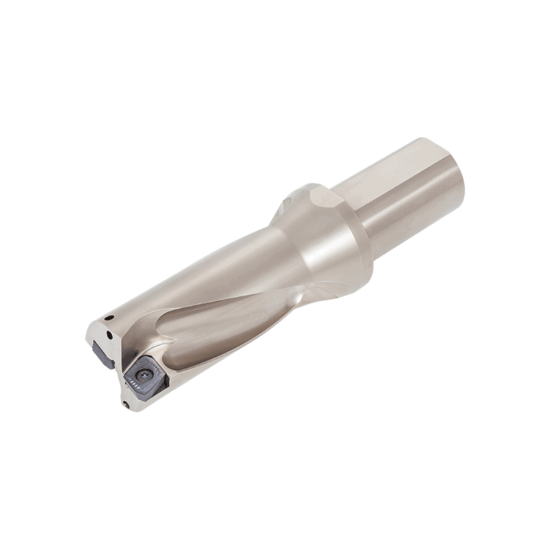

Picture of TUNGALOY TDX245F25-2 24.5mm TungDrill Twisted Indexable Insert Drill s, L/D=2, Flat cotter

TUNGALOY TDX245F25-2 24.5mm TungDrill Twisted Indexable Insert Drill s, L/D=2, Flat cotter

ISO: TDX245F25-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718383
Delivery date: 3-5 days
$558.95

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Flute Length 1.9530 49.61MM
Cutter Dia 0.9646 24.50MM
Cut Dia Min 0.9646 24.50MM
Overall Len 5.0039 127.10MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
